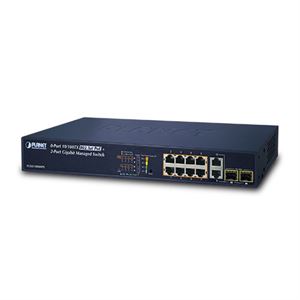

FGSD-1008HPS

Physical Port

• 8-port 10/100BASE-TX RJ45 copper with PoE in-line supported
• 2-port 10/100/1000BASE-T RJ45 copper
• 2 1000BASE-X mini-GBIC/SFP slots to share with Port-9 to Port-10
• Reset button for system management

PoE

• Complies with IEEE 802.3at High Power over Ethernet End-span PSE
• Complies with IEEE 802.3af Power over Ethernet End-span PSE
• Up to 8 IEEE 802.3at / 802.3af devices powered
• 125 watts PoE budget
• Supports PoE Power up to 30.8 watts for each PoE port
• Detects powered device (PD) automatically
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100m
• PoE Management
- Per port PoE function enable/disable- PoE Port Power feeding priority- Per PoE port power limit- PD classification detection- PoE Power sequential

Layer 2 Features

• Auto-MDI/MDI-X detection on each RJ45 port
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• Supports broadcast storm control
• Supports VLAN
- IEEE 802.1Q tag-based VLAN, up to 30 VLANs groups, out of 4094 VLAN IDs- Port-based VLAN, up to 10 VLAN groups- MTU VLAN (Multi-tenant Unit VLAN)
• Supports Link Aggregation
- 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (static trunk)- Maximum 3 trunk / LACP groups, up to 4 ports per trunk / LACP group
• Supports Spanning Tree Protocol
- STP, IEEE 802.1D Spanning Tree Protocol- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
• Port mirroring to monitor the incoming or outgoing traffic on a particular port, many-to-1
• Loopback protection to avoid broadcast loops

Quality of Service

• Ingress / Egress Rate Limit per port bandwidth control
• 2 priority queues on all switch ports
• Traffic classification
- Port-based priority- IEEE 802.1p-based priority- IP TOS / DSCP-based priority- TCP / UDP port-based QoS
• Strict priority and Weighted Round Robin (WRR) CoS policies

Multicast

• Supports IGMP Snooping v1 and v2

Security

• Physical port to MAC address binding
• TCP/UDP port number filter: Forwarding or discarding typical network applications

Management

• Switch Management Interfaces
- Web switch management- SNMP v1 / v2c switch management
• Supports DHCP Option82 and DHCP Relay
• Firmware upload/download via HTTP
• Configuration upload/download through HTTP
• Hardware reset button for system reboot or reset to factory default
• PLANET Smart Discovery Utility
