| Product |
|
| Model |

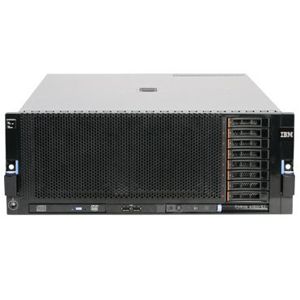

IBM System x3850 X5 |
| P/N |
7143-B1A |
| Form Factor |
Rack 4U |
| Processor |
|
| Processor |
2 x Intel® Xeon® Processor E7-4807 (18M Cache, 1.86 GHz, 4.80 GT/s Intel® QPI) |
| Cache size |
18M Cache |
| Upgradeability |
2/4 Processor |
| Chipset |
IBM eX5 |
| Memory |
|
| Type |
PC3-10600 DDR3L |
| Installed Size |
2x4GB RAM DDR3 PC8500/1024GB |
| Maximum |
2.0 TB max PC3-10600 DDR3L, up to 3.0 TB with MAX5 |
| DIMM sockets total / available |
2/32 |
| Drive bays total / available |
|
| Disk bays (total/hot-swap) |
8/8 2.5" Serial Attached SCSI (SAS) or 16/16 SAS SSD |
| Storage |
|
| Diskette Drive |
None |
| Optical Drive |
DVD RW |
| Hard Drive |
IBM 300GB 10K SAS HDD Hot-Swap (2.5") |
| Disk drive technology |
Hot-swap SAS |
| Maximum HDD capacity |
|
| |
4.8TB per chassis (supports 8 ×73.4GB, 146.8GB, 300GB, 500GB and 600GB SAS hard disk drives, 8 ×160GB and 500GB SATA hard disk drives, or 16 ×50GB and 200GB solid state drives) |
| Optional RAID controllers supported |
|
| Installed |
RAID M1015 0, 1 & 10 std |
| Supported |
optional Raid 5,6,50,60 |
| External disk drives supported |
|
| Expension slot |
1 Full-height/full length per chassic/node (PCI x16)
2 Full-height/full length/ 3 Full-height /half-length per chassic/node (PCI x8)
1 Full-heght/full length per chas |
| Graphic |
|
| Video controller |
ATI Radeon ES1000 |
| Video memory |
16MB SDRAM |
| Gigabit Ethernet controller |
|
| Type |
Dual Ethernet 10/100/1000 |
| Gigabit Ethernet ports |
2 |
| Power supply size |
|
| Power supply size |
2x1975W HS 2/2 |
| Power supplies standard /maximum |
2 / 2 |
| Hot-swap/redundant power supported |
Yes |
| Operating systems supported |
|
| |
Microsoft® Windows Server® 2008 (Standard, Enterprise and Data Center Editions 64-bit), Microsoft Windows Server 2003 (Datacenter and Datacenter x64), 64-bit Red Hat Enterprise Linux®, 64-bit SUSE Enterprise Linux, (Server and Advanced Server), VMware vSphere Hypervisor
|
